Zero Trust and NAT

Part A: Perform the following actions on the firewall:

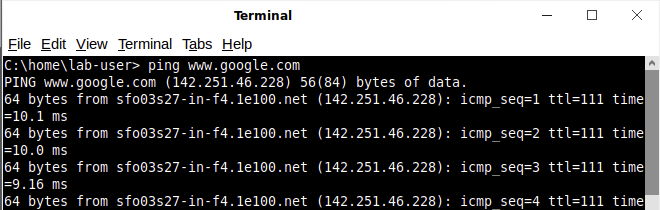

Before apply the lab3 configuration, ping google is successfully.

After the lab3 configuration is applied, ping is not successfully.

  • Ensure that you use TAGS (color code)

Tag color code is setup.

  • Change the admin password

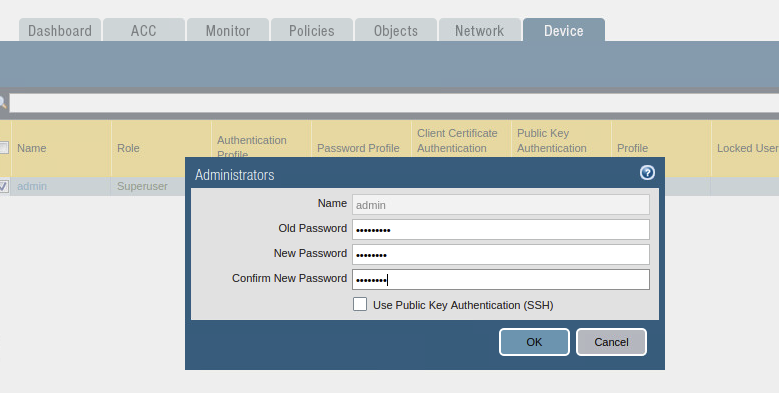

Changed admin password to P@ssw0rd

  • Create a user that has access to all of the logs (including packet captures)

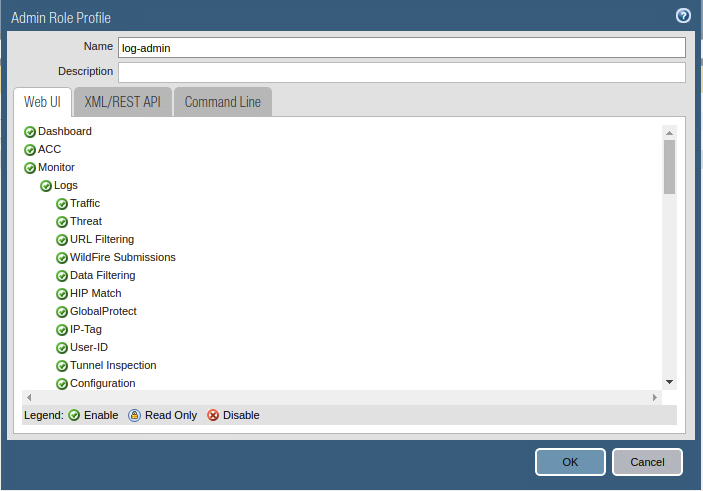

Created user log-admin policy

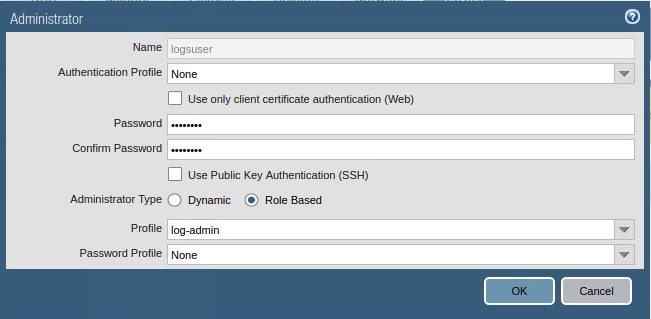

Created logsuser using log-admin role.

  • Replace the security certificate on the firewall

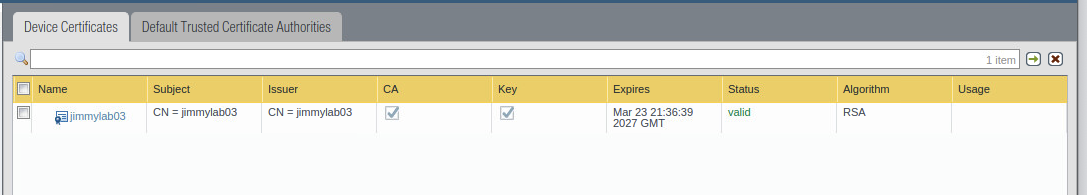

Generate certificate jimmylab03

Part B: Nat and Security Policies

  • Create and associate Zones with interfaces

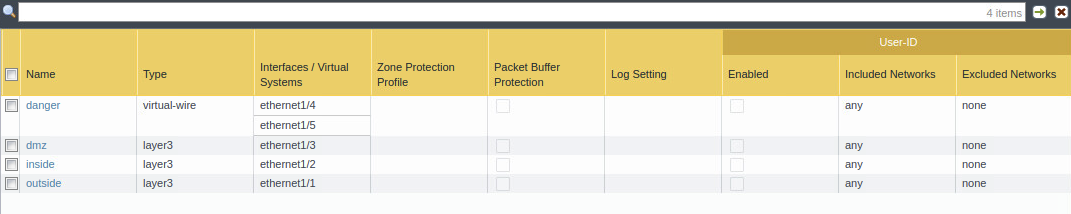

Zones with interfaces

  • Create rules/policies to allow the below ports/services to be accessed from the internet

    • Ensure that you utilize tags (color code)

    • DMZ- Ports: 80, 21, 22

    • Windows- Ports: 25, 3389

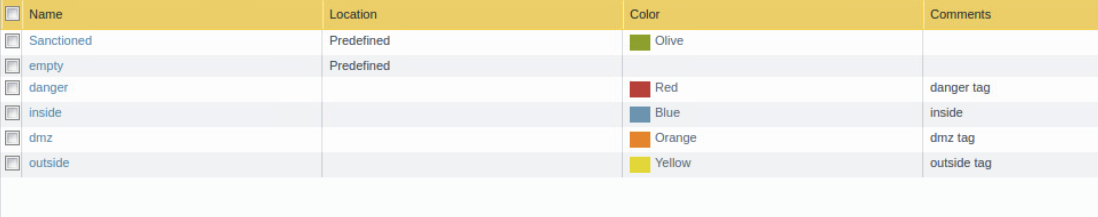

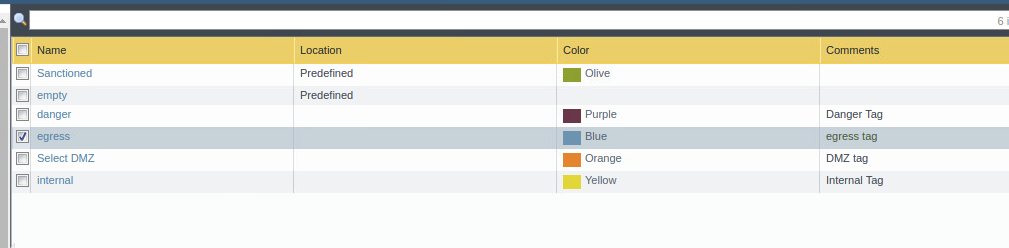

Setup the color tags

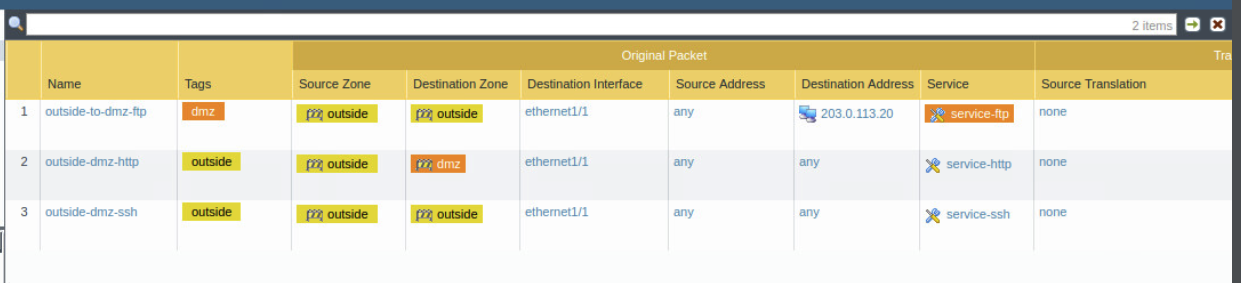

NAT rules for outside to dmz ftp / http / ssh

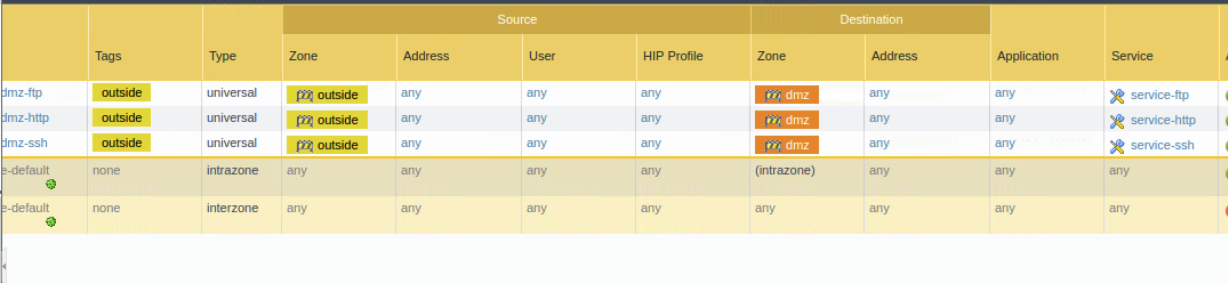

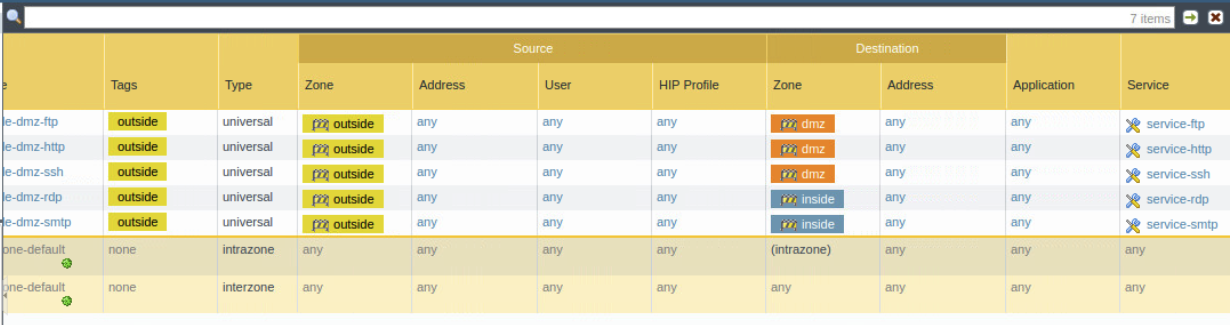

Policy for outside to dmz ftp / http / ssh

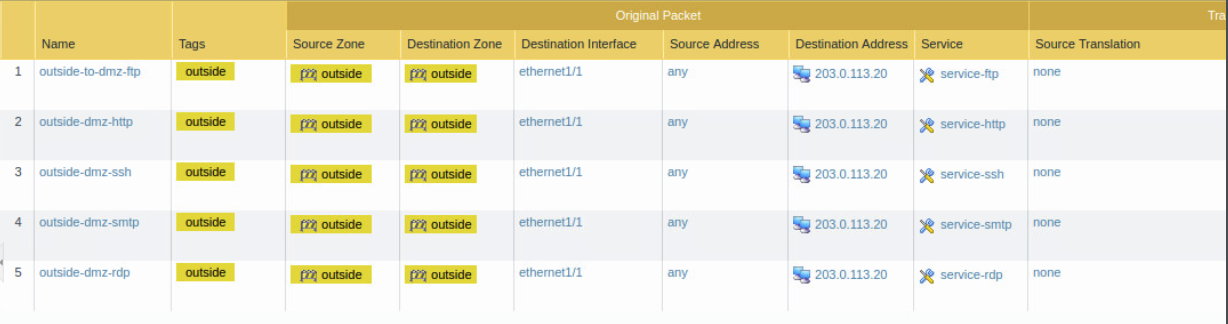

NAT port 25 and 3389 for windows

Policy for port 25 and 3389 for windows

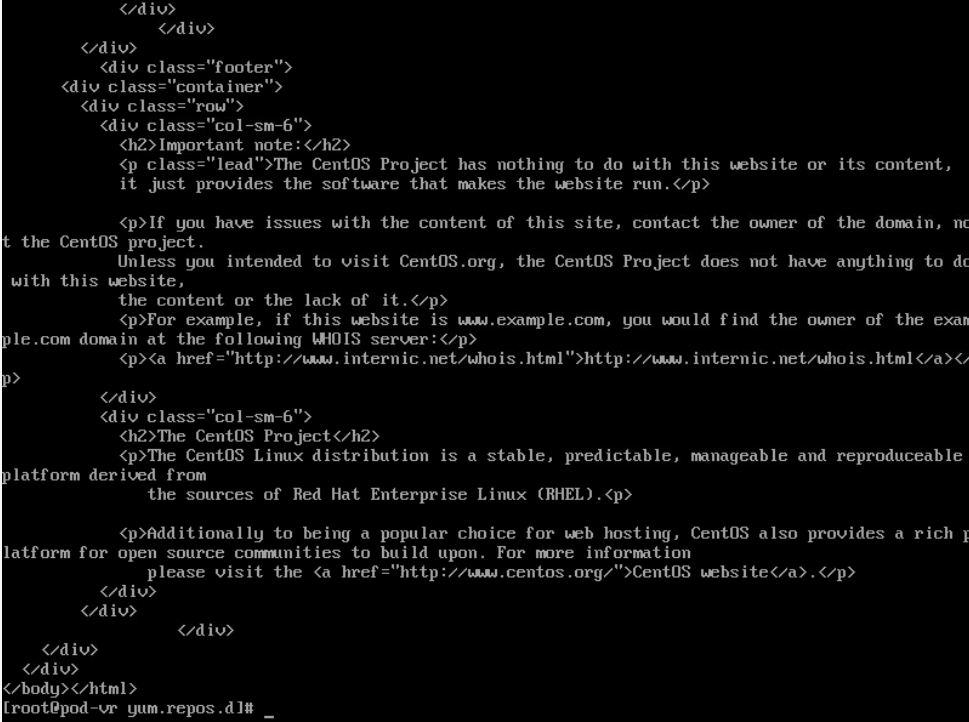

Port 80 can be access with curl command

  • Create a rule/policy to allow the Windows system to FTP to the DMZ system

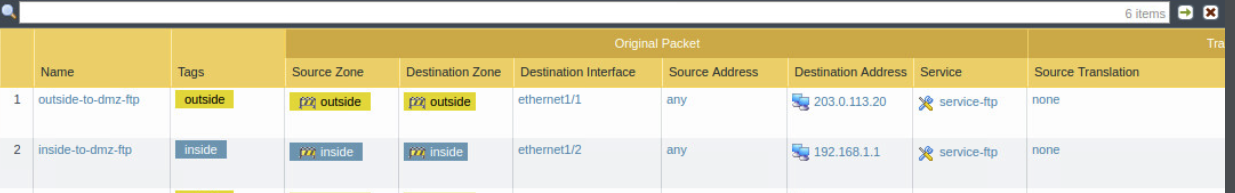

NAT Windows inside to dmz ftp

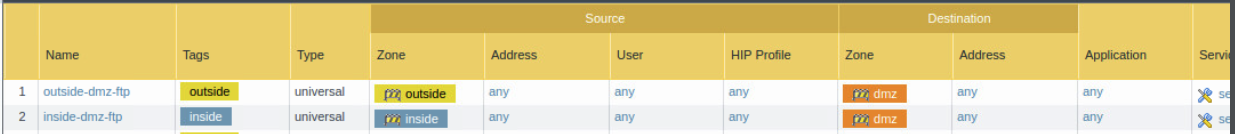

Policy windows inside to dmz ftp

Part C: Packet Capture and Analysis (using nmap)

  • Log in as a user with log rights that you created earlier

  • Setup packet capture on the firewall. Capture drop, firewall, and received packets

  • Install NMAP on the external router

    • yum install nmap (you can use curl if we do not get nmap installed in time)

    • Run the below nmap scans against the firewall to ensure that the correct ports/services are open

      • nmap -sS x.x.x.x

      • nmap -sS -p80, 21, 22 etc x.x.x.x.

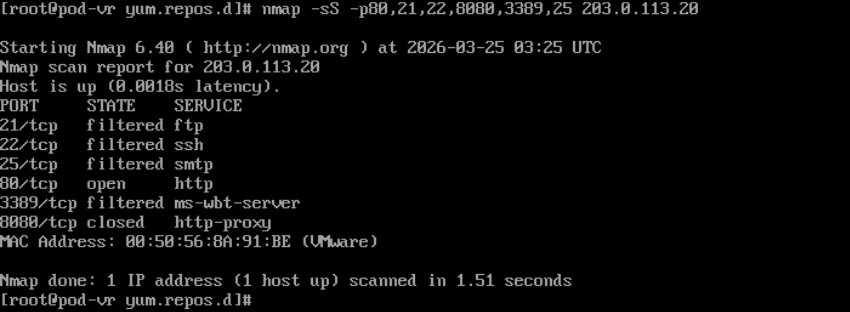

Nmap scan to show the port open at firewall

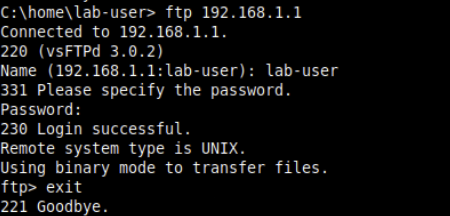

Ftp from inside to DMZ

  • FTP from the external and from the Windows system onto the DMZ FTP server.

    • Are you able to view the different logs generated

I don’t see the logs generated when I connect the FTP but I can see the Hit Count in NAT rules and Policy rules.

  • Analyze the firewall logs within Palo Alto.

    • Can you see the scanning activity?

I don’t see scanning activity in Palo Alto

  • Are you able to see your ports/services open via the logs generated?

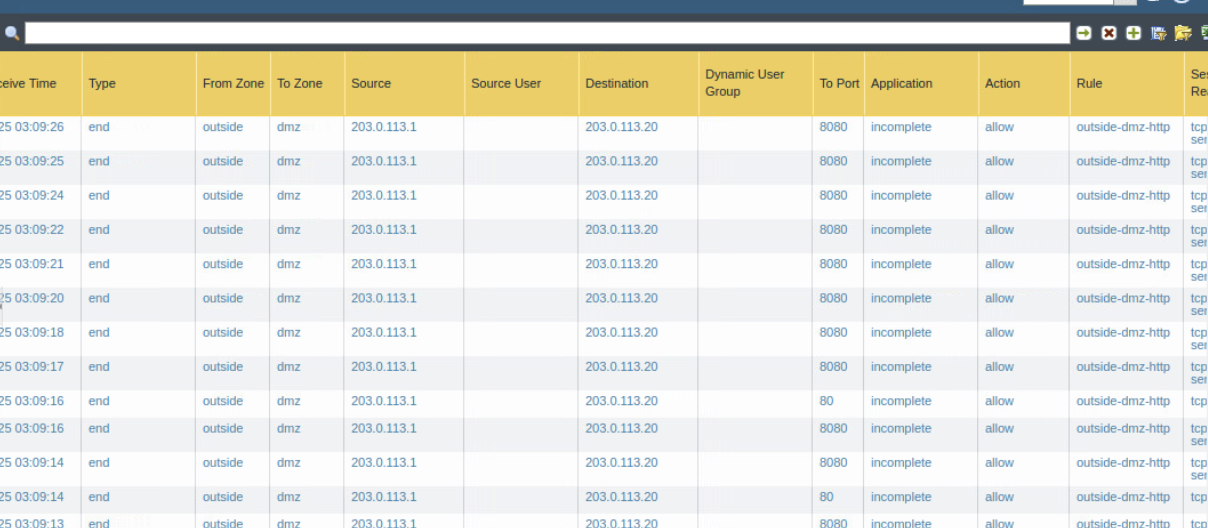

Yes, I can see the port services open via logs

  • Use the ACC network activity to analyze your firewall logs. Narrow down your view to your outside ports/services

I can see the services in ACC as following

  • Utilize Wireshark to view the logs that Palo Alto created.

    • Did the Palo Alto pcap logs capture the above activity?

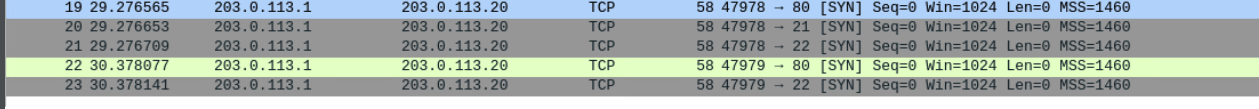

Yes the pcap logs shows the nmap scan
